A blind

  • Print
Details
Parent Category: Simple Move
Created on Friday, 28 May 2010 12:38
Last Updated on Wednesday, 11 September 2013 14:40
Published on Friday, 28 May 2010 12:38
Written by sandrine
Hits: 224

Move a blind with Simple Move is really easy. Let's go !

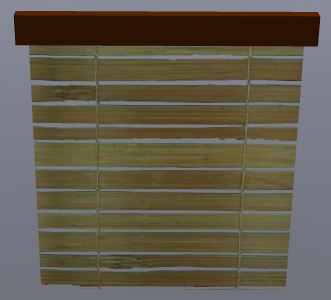

First create your blind :

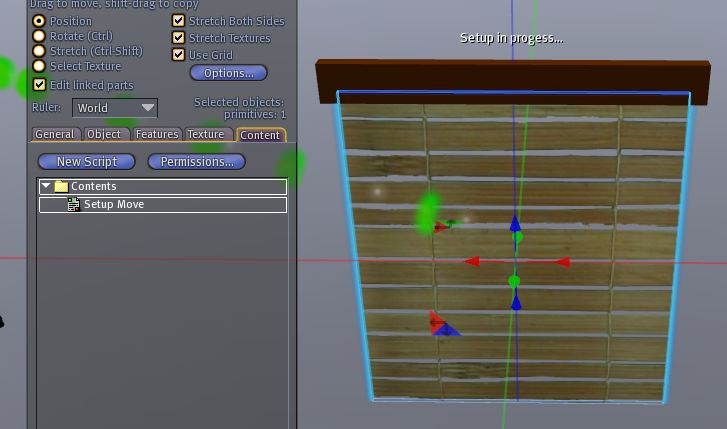

There is 2 primitives linked. The blind here is the child. Select the blind with option "Edit linked parts" and drop the script Setup Move in the inventory :

You get this menu :

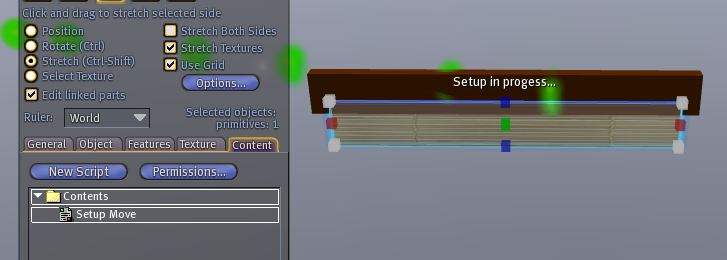

So put your blind in its shut state (position and scale) and click on "DONE". You get a new menu :

Change the scale of the blind to get the open state :

Take care not to change the top position, dont use the option "Stretch Both Sides" ! Just move the bottom. Then click on "DONE". You get this menu :

Select one of the 3 buttons : Owner, Group or All. You get a new menu :

Select "Infinite". You get a new menu :

Select 5s. You get a new menu :

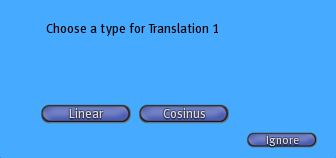

Select "Cosinus". You get a new menu :

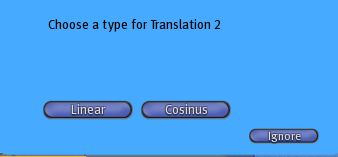

Select "Linear". You get a new menu :

Select "Infinite". You get a new menu :

Select 5s. You get a new menu :

Select "Cosinus". You get a new menu :

Select "Linear". You get a new menu :

You can test your move with "Test" button and change all parameters :

When all is ok click on "End" button, you get a new menu :

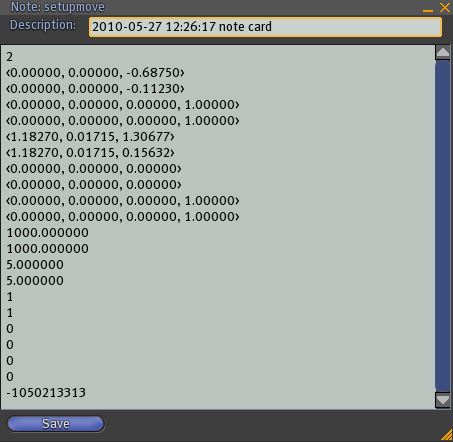

Click on "Go to page". Copy the informations in the web page and paste them in a notecard that you call setupmove :

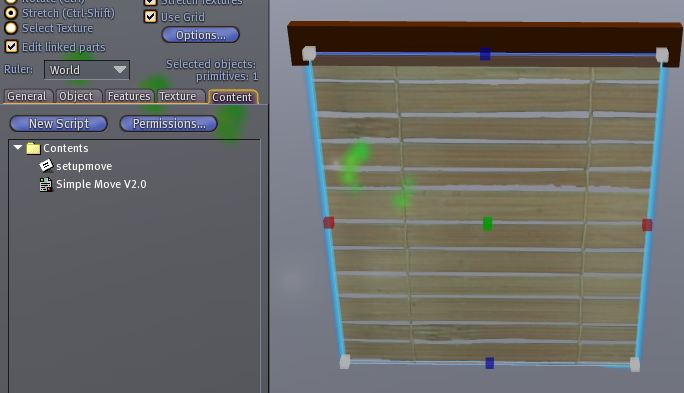

Now drop this notecard and the script Simple Move in the inventory of the bliind primitive :

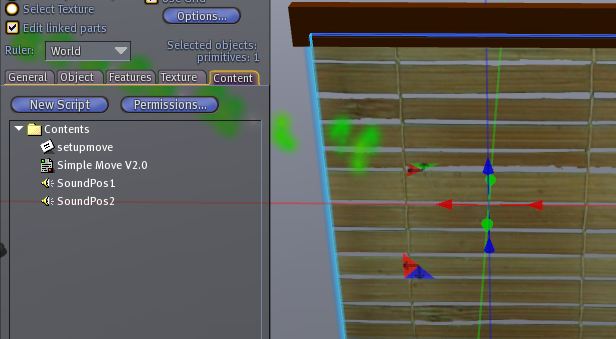

Take care to use option "Edit linked parts" ! Now your bllind is ready ! You can add sounds for the 2 states :

The sounds must have these names : SoundPos1 and SoundPos2.
